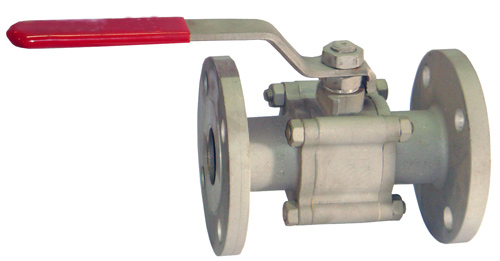

DESIGN FEATURES
- MANUFACTURING STANDARDS : AS PER BS 5351
- FACE TO FACE AS PER ANSI B 16.10
- ENDS : FLANGED END AS PER ANSI B 16.5 R.F & BUTTWELD AS PER ASME B 16.25 & SCREWED TO BSP/NPT
- TESTED AS PER BS 6755
- AVAILABLE WITH LEVER , GEAR & PNEUMATIC ACTUATOR OPERATED
- SIZES AVAILABLE FROM 15mm TO 300mm
|
| HYDRAUSTATIC TEST PRESSURE |
| CALSS |
BODY |
SEAT |
| 150 |
32 Kg./cm2 |
23 Kg. /cm2 |
| 300 |
80 Kg./cm2 |
58 Kg./cm2 |
| 800 S/E |
210 Kg./cm2 |
60 Kg./cm2 |
|
| |

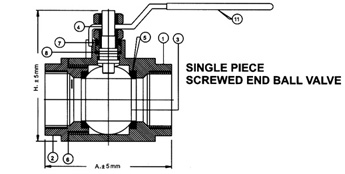

| DIMENSIONS OF SINGLE PIECE BALL VALVE |
| NB |
6 |
15 |
20 |
25 |
40 |
50 |
| A |
65 |
70 |
70 |
90 |
105 |
128 |
| H |
40 |
43 |
43 |
50 |
75 |
83 |
|
