| Forged Steel Valve |

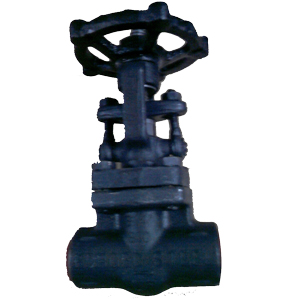

| Forged Steel Gate Valve |
 |
Forged Steel Gate Valve – 800# / 1500#
Technical Data:
Manufacturing Std.: BS 5352 / API 602
End Connection: Screwed Ends to BSP/BSPT/NPT
: Socket Weld Ends to ANSI B16.11
Inspection and Testing Std.: BS 6755 (Part-1) / API 598 |
|
| TESTING PRESSURE |
| TESTING |
HYDRAULIC |
PNEUMATIC |
| |
800# |
1500# |
|
| BODY |
3000 PSIG |
5560 PSIG |
- |
| BACK SEAT |
2200 PSIG |
4080 PSIG |
- |
| SEAT |
2200 PSIG |
4080 PSIG |
80 PSIG |
|
| |
| Forged Steel Globe Valve |
 |
Forged Steel Globe Valve – 800# / 1500#
Technical Data:
Manufacturing Std.: BS 5352
Face to Face: D N Bros. Std.
End Connection: Screwed Ends to BSP/BSPT/NPT
: Socket Weld Ends to ANSI B16.11
Inspection and Testing Std.: BS 6755 (Part-1) |
|
| TESTING PRESSURE |
| TESTING |
HYDRAULIC |
PNEUMATIC |
| |
800# |
1500# |
|
| BODY |
3000 PSIG |
5560 PSIG |
- |
| BACK SEAT |
2200 PSIG |
4080 PSIG |
- |
| SEAT |
2200 PSIG |
4080 PSIG |
80 PSIG |
|
| |
| Forged Steel Lift Check Valve |
 |
Forged Steel Lift Check Valve – 800# / 1500#
Technical Data:
Manufacturing Std.: BS 5352
Face to Face: D N Bros. Std.
End Connection: Screwed Ends to BSP/BSPT/NPT
: Socket Weld Ends to ANSI B16.11
Inspection and Testing Std.: BS 6755 (Part-1) |
|
| TESTING PRESSURE |
| TESTING |
HYDRAULIC |
PNEUMATIC |
| |
800# |
1500# |
|
| BODY |
3000 PSIG |
5560 PSIG |
- |
| SEAT |
2200 PSIG |
4080 PSIG |
80 PSIG |
|
| |

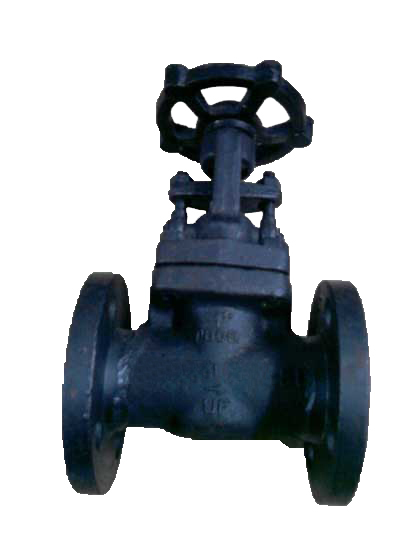

| Forged Steel Gate Valve-Fabricated Flanged End |
 |
Forged Steel Gate Valve – 150# / 300#
Technical Data:
Manufacturing Std.: BS 5352 / API 602
Face to Face: ASME B16.10
End Connection: Flanged Ends to ASME B16.5, RF
Inspection and Testing Std.: BS 6755 (Part-1) / API 598 |
|
| TESTING PRESSURE |
| TESTING |
HYDRAULIC |
PNEUMATIC |
| |
150# |
300# |
|
| BODY |
425 PSIG |
1125 PSIG |
- |
| BACK SEAT |
315 PSIG |
825 PSIG |
- |
| SEAT |
315 PSIG |
825 PSIG |
80 PSIG |
|
| |
